SYDR302 Disc Stack Centrifuge SKF or FAG Bearing for Algae Separation
Introduction:
Disc separator is a vertical centrifuge. Drum installed on the upper end of vertical shaft, drive by a motor through a transmission device and high-speed rotation. There is a set of nested with each other together of the disc parts—disc in the drum. The small gap is left between disc and disc.
Suspension (or emulsion) enters into drum through the feeding tube of the centre of drum. When the suspension (or emulsion) is going through
the gap between the discs, solid particles (or droplets) sink down the disc and form sediment (or the liquid layer) in the effect of the centrifuge.
Sediment slides along the surface of the disc, is out of the disc and accumulates in the part of the largest diameter of the drum. Liquid after
separation discharge out of the drum through the discharge port. The role of the disc is to reduce the settlement distance of the solid particles (or droplets), to expand the settlement area of the drum. Separator’s capacity is greatly improved with installing discs. The solid accumulating in the
drum is eliminated manually after the separator stop, or discharged out of drum through slag machine when the separator does not stop.
Feature:
Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifying operation; liquid-liquid (or liquid-liquid-solid) separation (emulsion separation), said separating operation. Disc separator with its compact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, bacteria and
transportation.
The advantages:
high speed and high separation factor
automatic discharge
Siemens PLC control box with self-cleaning system
widely application
stable and long service life
Technical paramete:
| No. | Model | Capacity (L/h) | Drum diameter (mm) | Drum speed (r/min) | Separation factor | Power (KW) | Slag discharge way | Weight (kg) | Dimension (mm X mm X mm) |
| 1 | HGDR230 | 1500 | 230 | 6930 | 6170 | 2.2 | manual | 240 | 850X625X985 |
| 2 | HGDH 270 | 2000 | 270 | 7200 | 6950 | 4 | automatic | 550 | 865X645X1100 |
| 3 | HGDH 315 | 3000 | 315 | 6500 | 7000 | 5.5 | automatic | 650 | 900X600X1150 |
| 4 | HGDH 385 | 4000 | 385 | 6500 | 7500 | 7.5 | automatic | 750 | 1100X1050X1250 |
| 5 | HGDH 430 | 5000 | 430 | 6000 | 8050 | 11 | automatic | 1000 | 1200X950X1400 |
| 6 | HGDH 470 | 8000 | 470 | 5800 | 8500 | 18.5 | automatic | 1200 | 1250X1000X1550 |

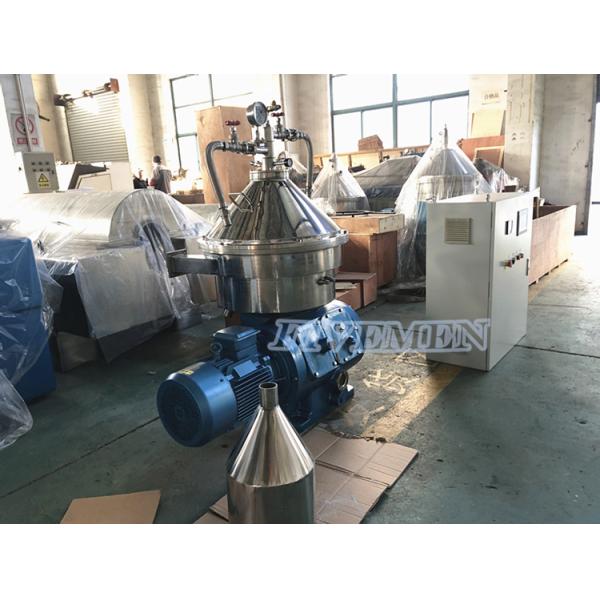

Photos:
